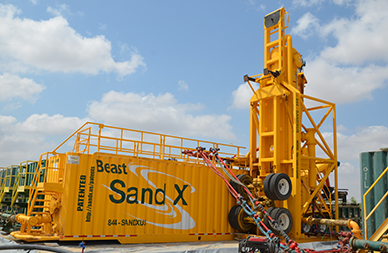

Sand X® BeastThe Sand X® Beast is an environmentally friendly, safe and cost saving technology that restores sand to be safe for other applications. The Sand X® Beast process offers the following benefits:
For more information please visit www.sandx.us. |
![]() |
Super Loop® RoyalWell is rigged to 3" 1502 inlet subsequent to the customers hydraulic choke. Via the Gas Buster, pressure is released through the 8" expansion tube. Sand, chlorides and hydrocarbons fall to the bottom of the Super Loop® Royal; while gas exits the 4" outlet on top of the vessel. As solids settle to the bottom of SuperLoop® Royal, they are caught and moved up the elevator tube. The Super Loop® Royal process allows collection and delivery of solid material, minus gases, to be delivered to the Sand X® Beast. As solids and liquids are delivered to the Sand X® Beast the cleaning and separation process begins. Solids fall to bottom of hopper while liquids (hydrocarbons-oil) flow over the weir at rear of the hopper and enter the Sand X® Beast tank. As sand is moved up the tube to the discharge hose, liquid, chlorides and hydrocarbons are squeezed out of the sand leaving a non-hazardous material that is easily disposed. Impressively, laboratory tests have shown as little as 200 ppm. In addition to eliminating a hazardous material for disposal, the Sand X® Beast process also allows operators to re-circulate drilling fluids from the Sand X® Beast tank, saving thousands in chemical costs. For more information please visit www.sandx.us. |
